Boneceram

Boneceram-Bone void filler-

Device Description

Boneceram is a bone substitute which is composed of hydroxyapatite.
There are two porosity types.
Boneceram P is a porous type.
Boneceram K is a dense type.
Both types have good biocompatibility.
Boneceram is mainly used as a space holder to retain space due to its strength and various unique shapes.

* Boneceram has been available in Japan since 1988.

[Launched countries: Japan, Hong Kong]

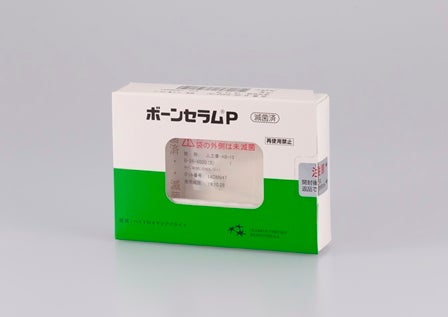

Boneceram P-Bone void filler-

Features



SEM image

  • Hydroxyapatite (HA)
  • Good biocompatibility
  • Spherical porous structure contributes to good bending strength
  • Optimal macro pore diameters for good bone in-growth
  • Special forms as a space holder

Specifications

Molecular formula
Ca10(PO4)6(OH)2
Molecular weight
1004.63
Generic name
Hydroxyapatite
Properties
Porous material
Bending strength
8.33 MPa or more
Porosity*
35 - 48% *Conversion of unit weight
Pore Size
50 - 300 μm
Form
Block, Cylinder, Granule, Illiac spacer Lamino spacer, bar-hall button, etc

Forms & Usage examples


Spinous process spacer


Lamino spacer


Bar-hall Button


Illiac spacer (Posterior)


Block with a lid


Cylinder with a lid

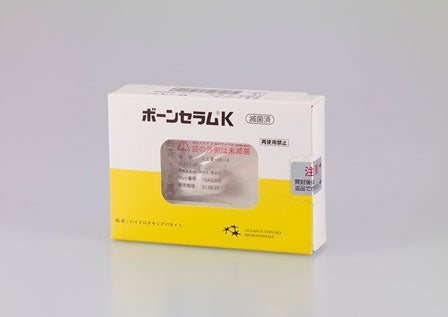

Boneceram K-Bone void filler-

Features

  • Hydroxyapatite (HA)
  • Good biocompatibility
  • Dense type
  • Superior mechanical strength to Bonceram P
  • Special forms as a space holder

Specifications

Molecular formula
Ca10(PO4)6(OH)2
Molecular weight
1004.63
Generic name
Hydroxyapatite
Properties
Dense material
Bending strength
58.8MPa or more
Porosity
Dense
Pore Size
-
Form
Filler, Illiac spacer, Cage, Bar hall button, etc

Hybrid type

Boneceram also has hybrid types.
The hybrid types have triple layers consisting of porous layers and a dense layer.
The porous surface is infiltrated by osteocytes and the dense layer provides strength.


Cervical Spacer

Forms & Usage examples


Illiac spacer (Anterior)


Lumber/Thoracic Spacer


Bar-hall Button
